Metal Engraving Tool News
Recent Information to the AirGravers will be announced on this page.  If you have visited before and want to check what is new, take a look here first.

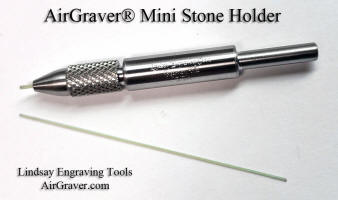

AirGraver® Mini Stone Holder

Special thanks to Chris DeFlorentis for the inspiration in creating a stone holder for the AirGraver®



The size of stones the holder is made for are:
.3mm (.012") square from Artco.com $4.50 each
.5mm (.020") square from Artco.com $4.50 each
.5mm x 1mm from Gesswein.com $9.95 each
Available grits 180 through 1200

AirGraver® Mini Stone Holder
(stones not included) $49.00


This stone holder is for the  the Classic AirGraver® (foot control model or PalmControl model).  Use the holder in the AirGraver for finishing surfaces of sculpture carving and engraving. The AirGraver's unique action of isolated fast ultrasonic like movement works great for use with finishing stones.  Use the stones in hard to reach areas to smooth surfaces. Tip: Impacts per minute of AirGraver should be set at a 6000 to 10,000 range. Set the Classic's adjust ring toward a shorter stroke with the standard or light weight stainless pistons. Click speed chart below

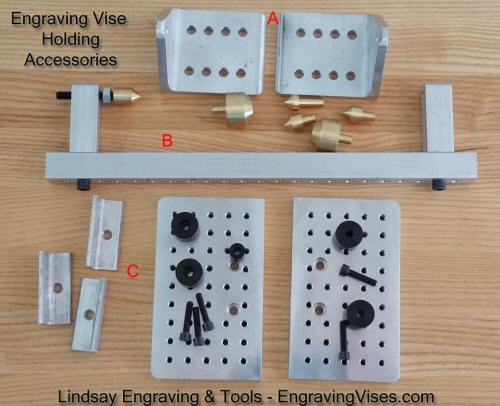

A: Adjustable centers for Low Profiles, later Goliaths, and Mammoth Vises.
B: Adjustable centers for clamping in any vise.
C: Universal screw plates for Low Profile, later Goliath, and Mammoth Vises.  Includes nylon standoffs and screws shown.

Engraving Vises Page is at: www.EngravingVises.com

Thank Ray Cover for ideas and help making these accessories happen.

Vise Holder Accessories
$229




Negative relief 116 Uniform-Parallel Graver Point™ template.

This template is the same as the normal 116°, but the relief grind under the heel is negative. The purpose of this negative grind is to achieve more heel clearance. This additional relief was described in the
Lindsay Uniform-Parallel Point™ patent
, but this is the first template made available to actually achieve this point.

This template requires that the height of the grinding lap or bench stone be 3/4" instead of the usual 1/2" seen in all previous templates. I recommend just shimming your 1/2" stones up the last 1/4". The plastic 6"x6" plate included with the full sharpening kit happens to be 1/4", so that can utilized.

A power hone for initially shaping this is helpful. However it can be done with the diamond bench stones. Steve tested how long it would take him to sharpen one from a Carbalt™ blank on the diamond bench stones. It was 15 minutes. Of course starting with a the 3 degree tapered Carbalt™ blank would considerably shorten the time.



Negative Relief Universal



Negative Universal Template
$27.00
Add To Cart

Negative Relief
"Detailing 96 degree" Uniform-Parallel Point™ template
.

This is the same type of Negative relief template described above but it makes a Detailing 96 degree angle.

Negative Relief  Detailing

Negative Detailing  Template
$27.00
Add To Cart



Joacim Jansson - Extra Negative Relief
"Detailing 96 degree" Uniform-Parallel Point™ template
.

This is the same type of Negative relief template described above but with more relief as well as it will make a narrower shank.

Extra Negative Relief  Detailing

Extra
Negative Detailing  Template

$27.00
Add To Cart

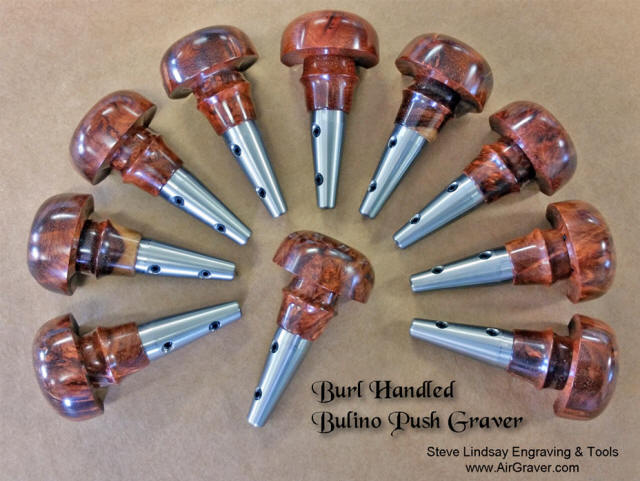

Burl Handle Manual Stainless Palm-Push Adjustable Graver



Burl Handle Manual Stainless Palm-Push Adjustable Graver
$199


Basic Coin Carving Set w/three stones

-Set of Paolo "MRTHE" Curcio, carving templates (Detail link about these templates)
-Universal point template
-Sharpening metal fixture for templates
-3 diamond bench stones: 260, 1200, and 2000 grits
-3 pack HSS graver blanks
-Stainless adjustable manual palm push graver

Basic Coin Carving Set, w/two stones  (Same as above but with two diamond bench stones, 260 grit and 1200 grit)

Basic Coin Carving w/three stones
$292




Basic Coin Carving set w/two stones (with two diamond bench stones, 260 grit and 1200 grit)
$253


Deluxe Coin Carving Set

-Set of Paolo "MRTHE" Curcio, carving templates (Detail link about these templates)
Universal point template
-Sharpening metal fixture for  templates
-4 diamond bench stones: 260, 600, 1200, and 2000 grits
-2 pack M42 graver blanks
-2 pack HSS graver blanks
-2 pack Carbalt graver blanks
-Stainless adjustable manual palm push graver
-Stainless Chisel graver holder for hammer/chisel engraving

Deluxe Coin Carving Set
$427



Multi-Coin Vise
Thread on the Engraving forum about the Coin Holder:
http://engravingforum.com/showthread.php?t=10942

Multi-Coin Vise
Holds Eight Coins with Two Sets of Reversible Jaws Nickel, Quarter, Cent, Dime, Half Dollar Silver Eagle, Morgan Dollar, Native American Clamp block on bottom for mounting in a larger engraving vise.

The Mulit-Coin vise holds some 61 different coins.  Made with US denominations in mind, those measurements happen to accommodate a wide variety of coins from many countries.
Click here for the list of 61 coins.

Multi-Coin Vise
$249


Hobo Nickel Holder
For hobo nickel carving or practice engraving on a nickel.
Made from stainless steel


View a hobo nickel holder engraved by Paolo Curcio in 2011. Visit this thread on the forum.


Nickel Holder
$49.00


Various links and tips to graver sharpening information:
http://www.engravingschool.com/private/Lindsay%20Sharpener.htm
http://www.engravingforum.com/showthread.php?t=8693
http://www.youtube.com/watch?v=bZ7z8gtWsT0
http://engravingschool.com/private/LindsayPoint-Intro.htm
http://engravingforum.com/showthread.php?t=2019
http://www.handgravers.com/sharpening.htm
http://engravingforum.com/showthread.php?t=8210
http://engravingforum.com/showthread.php?t=9118
http://www.handengravingforum.com/showthread.php?t=2019





American Engravers-III
Masterpieces in Metal by
America's Engraving Artisans -

by C. Roger Bleile
Click  for more information

$75

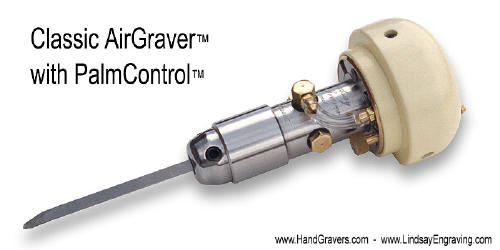

Lindsay Quick Change extension for Classic and PalmControl® Classic handpieces
Available with Single and Quad Indexing

Single indexing assures quick change to same oriantation each time.  Quad indexing allows four choices of orination of the collet and therefore the graver you are using.

These quick change extensions won't wear out.  They are made from 440C stainless and hardened to 60 Rockwell.  60 Rockwell is as hard as a high speed steel graver and therefore these QC extensions are made for a life time of service. They are detented for a snap in fit utilizing the internal O-ring in the nose of the AirGraver® handpieces. They extend a graver 5/8".


Single index
2 pack $19.95

Single index
5 pack $47.50

_______

Quad index
2 pack $19.95

Quad index
5 pack $47.50






Lindsay Engraving Stand with Built in Turntable
Use this stand with a low profile turntable vise. (Thanks to Ray Cover for ideas for this stand.)

Features:  10" diameter smooth turntable, ridgid steel constructation,
adjustable height from 24" to
36"
Price $449, plus $55 flat shipping & handling within USA.
Add To Cart



Border Scribe
Used to layout (scribe) borders around the profile of a part.
$69.50


"MicroGraver Template Set"

Thanks to Paolo Curcio (mrthehobonickels.com) for development ideas and help with this template set!

Please visit this thread on the Forum for more information about these templates.. coming soon link


This double thickness template set is similar to the "Narrower" template above, however the square in this set is smaller. It is used to narrower the graver too, but so that it closer to parallel with the shank, so that the grind is more long and slender. After the square template is used, the round is used to round the top edge of the slender shank. After this the graver is sharpened normally with the other available templates to make micro versions of the graver points.

The wrench are setscrew are provided to replace the thumbscrew in the sharpening fixture. This is needed to be done before using these templates because they grind so low that the thumbscrew will be in the way if it is not removed. Simple remove the thumbscrew and install the setscrew with the supplied wrench. Of course, when you finish with shaping a graver shank with these templates you may reinstall the thumbscrew.

$22.00Add To Cart

Tapered CarbaltXD Blanks

Available in the following tapers

Straight
1 Degree
2 Degree
3 Degree


Click photo to enlarge

View the information and tips concerning rigidity and breaking points if using thin graver shanks on the Graver blanks page.

Note: the 3 degree or 2 degree taper is recommended over straight or 1 degree tapers. If new to engraving stick with the 3 degee to keep the rigidity in the shank while learning.

$23 each.
Sold in packs of
five.

Staight
Add To Cart
1 Degree
Add To Cart
2 Degree
Add To Cart
3 Degree
Add To Cart

Get three pieces of 3 degree and two pieces 2 degree (total five)
Add To Cart

"Narrower" Template Click photo to enlarge
 The photo below illustrates three thinning techniques.

Thinning the tip of the blank can be done using this template which fits on the Lindsay sharpening fixture.


Illustrating how the pin can be moved if desired to rotate the grinds 45 degrees to the shank.  "Narrower" Template

$8.00
Add To Cart

Negative relief 116 Uniform-Parallel graver template.

This template is the same as the normal 116°, but the relief grind under the heel is negative. The purpose of this negative grind is to achieve more heel clearance. This additional relief was described in the
Lindsay Uniform-Parallel patent
, but this is the first template made available to actually achieve this point.

This template requires that the height of the grinding lap or bench stone be 3/4" instead of the usual 1/2" seen in all previous templates. I recommend just shimming your 1/2" stones up the last 1/4". The plastic 6"x6" plate included with the full sharpening kit happens to be 1/4", so that can utilized.

A power hone for initially shaping this is helpful. However it can be done with the diamond bench stones. Steve tested how long it would take him to sharpen one from a carbalt blank on the diamond bench stones. It was 15 minutes. Of course starting with a the 3 degree tapered carbalt blank would considerably shorten the time.

Negative Relief Universal Template
Click photo to enlarge


$27.00
Add To Cart

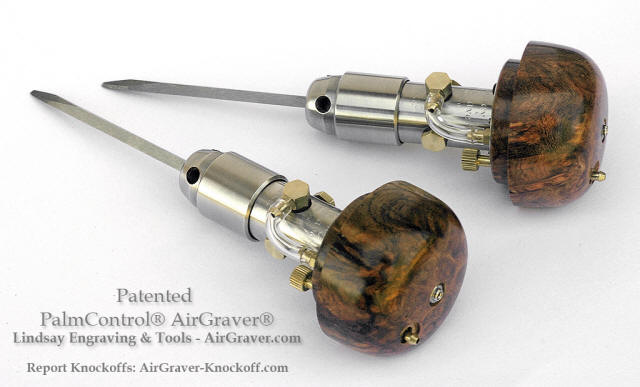

PalmControl® Burl Wood AirGraver®



New site: HoboCarvers.com (Defacing Currency for Fun & Profit)

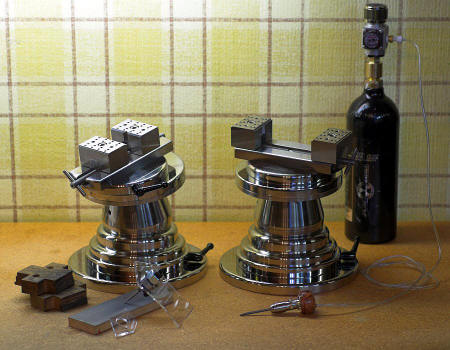

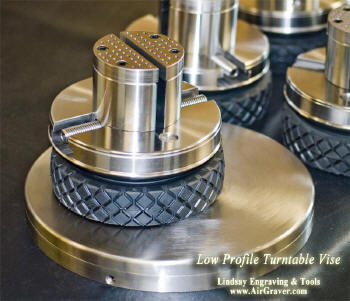

Low Profile Turntable Vise

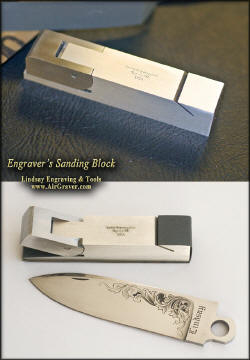

Engraver's Sanding Block
For securing sandpaper strips. Length of the sanding block is 2.5".  Cut your sandpaper 0.5" wide x 4.75" long.




How To Carve A Hobo Nickel Skull  -  by Paolo Curcio (MrThe)
DVD Learn how to Carve a Hobo Nickel.  Master carver and engraver Paolo "Mrthe" Curcio goes through the whole process, from beginning to end, of carving a Hobo Nickel Skull. It is great to see Mrthe's techniques in carving. A casting of the coin carved is included with the DVD that is helpful in a study aid and a collectors item itself.
For more information and to order direct from MrtheHoboNickels.com/dvd-sales.  --Click here--


Click photo for high resolution image.



New how-to book
Engraving Historic Firarms
By John Schippers

__________________
Bulino Template Set (visit the graver sharpening page)

The most popular of the V templates used to make bulino points are combined in a set.  Includes: 80V, 90V, 105V, 120V and the Phil Coggan Bulino template.
Bulino Set $99
Add To Cart
__________________
New Stipple Templates: Used to make a 3/32" square graver blank into a stipple point (visit the graver sharpening page)

__________________
Light weight piston for Classic and Artisan handpieces
A lighter weight piston than the standard piston comes with the Classic and Artisan AirGraver®.  The light weight piston is available with and without a nylon front hammering end.  A nylon front end impacts softer yet and also provides even quieter impacts.  (visit the AirGraver® overview page)
ight weight w/o nylon
$125

Add To Cart

Light weight with nylon
$135
Add To Cart
__________________

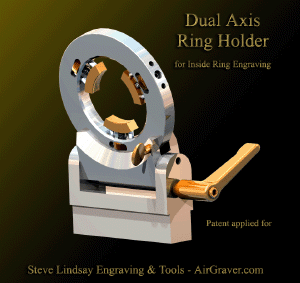

Coming soon...
Clamp this in a vise and use for inside ring engraving.
Dual axis to easily tilt a ring without need of tilting the vise or re-clamping in the jaws.
Click photo to enlarge

__________________

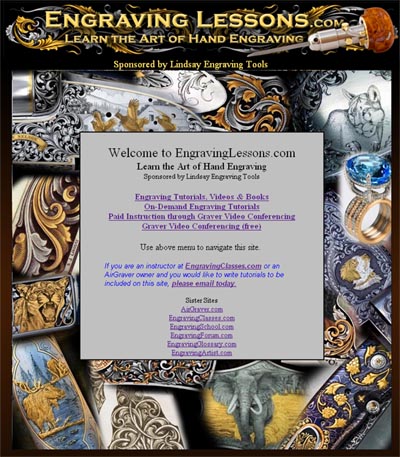

New Website: EngravingLessons.com -  Click here to check it out.


New NitroG20™ AirGraver®

For engraving extra deep such as in
Motorcycle and Heavier Western Engravings (click picture to enlarge)
Link to product page with NitroG20 handpiece.

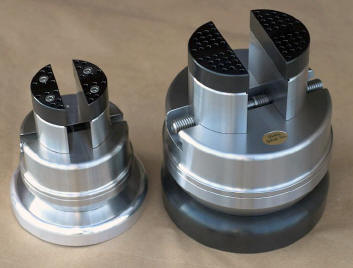

PalmControl® and Goliath Engraving Vises now available.


Barry Lee Hands gold engraving work on PalmControl® Damascus handle.  More information on the engraving forum.


New construction and building for Lindsay Engraving Tools.  Information and photos on the engraving forum.


New and updated Engraving Resources sites

www.EngravingGlossary.com
www.EngravingForum.com
www.EngravingSchool.com
www.EngravingClasses.com

Stainless and Damascus handles for PalmControl® AirGravers



Lindsay Quick Change extension for Classic and PalmControl® handpieces



Scottee-Shirts is providing t-shirts, (short and long sleeve) and hoodies with Lindsay PalmControl® AirGraver® and scroll designs. Check out the caveman master engraver Cindy drew.  Select the images and locations on the shirts and order direct from
Scottee-Shirts site.

Super nice cutting thick brass practice plates
 New Carbalt gravers

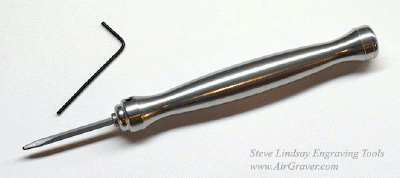

 Chisel for hammer and Chisel engraving

  Steve Lindsay Engraving Videos ~ 11 hours worth, free online

Templates for Master Engraver Carl Bleile's Graver Points

Check Product page for more information

Manual Palm-Push adjustable length graver with supple Santoprene rubber handle (click to enlarge).

Check Product page for more information



Graver with sharpener kit:
Manual Palm-Push stainless adjustable length graver with sharpener.

Check Product page for more information



J
The Official HandEngravingForum.com site now has Photo Albums for members.  These albums are displayed on the front page of the forum for everyone to enjoy.  You are invited to join our forum, learn the art as well as help other engraver, jewelers and artists as they learn.   www.EngravingForum.com


Over ten hours of videos of hand engraving are free on youtube.  Watch these videos on-line with your computer.   The Llindsay AirGraver® tools are used throughout the videos.  See and hear how these tools make hand engraving easier than any tool before it.  One of the projects that  being engraved in the videos is a SR Johnson knife that is valued over $50,000.  The collector of the piece, Dave Ellis of
www.exquisiteknives.com was  recently offered $30,000 for the completed knife and turned it down.   These videos are a great aid for those learning to engrave.
Videos page 1

Videos page 2
Videos page 3
Videos page 4

http://www.engravingforum.com/showthread.php?t=2500


Completed photo of the SRJ knife that was engraved in some of the videos.  Click to enlarge.



Larger version of the Glide-Lock engraving vise.  Info on the vise page.


Two more new templates are available for the sharpening system.  They are the Phil Coggan bulino template and the round bottom template.


Two new templates are available for the patent pending sharpening system.
1:Flat & Knife Combo for making flats or a small undercut gold inlay graver.
2: 70 V Bulino Uniform-Parallel point™ Used with a heel for lines or without a heel for bulino dots.


Glide-Lock Engraving vise

 Lynton McKenzie book now available




June, 2007 Update
Knife Sold

Feb, 2006
Knife For Sale:
Lindsay-Lindsay #5
Commissioned and purchased by a U.S. collector in Dec. 1994.  Due to recent illness the collector is selling the knife. $110,000 or best offer.   Visit this link for more information and photos.  The art knife is featured on the cover of the book, "Art and Design in Modern Custom Folding Knives", by David Darom.


EngravingSchool.com is updated

Old engraving books found online for viewing.
Link to forum thread about the books.

The Lindsay Graver Point Geometry
More information about the point geometry

New Book
mixes inspirational Knife Art & Engraving with how-to information.  To be first unveiled at the New York custom knife show March 7, 8, 9, 2003.


Artist Adone Pozzobon
has written a new review about the AirGravers on the EngravingArts WebSite.



Translate Site to Language
Arabic Japanese
Chinese Korean
French Portuguese
German Russian
Italian Spanish

Sister Sites:
www.EngravingForum.com
www.EngravingLessons.com
www.EngravingSchool.com

www.HandEngravingClasses.com
www.EngravingGlossary.com
www.LindsayEngraving.com
Contact - Email
